Model EG2 is has a mahogany neck and a body made of mahogany substitute timber called amoora.

For this prototype I’ve used a wenge fretboard, and wenge head veneers with an open grain satin finish.

The Australian made twin Firebird style mini hum bucker pickups are excellent.

All the components are quality – Japanese cut off tele bridge with compensated brass saddles, Gotoh 510 tuners, Evo Gold frets, ebony knobs on Alpha pots, a switchcraft three way switch and comes in an excellent Gator case.



Model 2 Electric body1

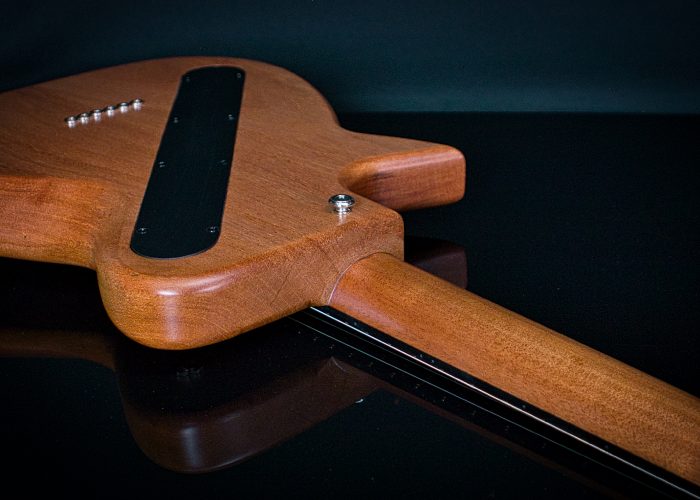

Model 2 Electric back

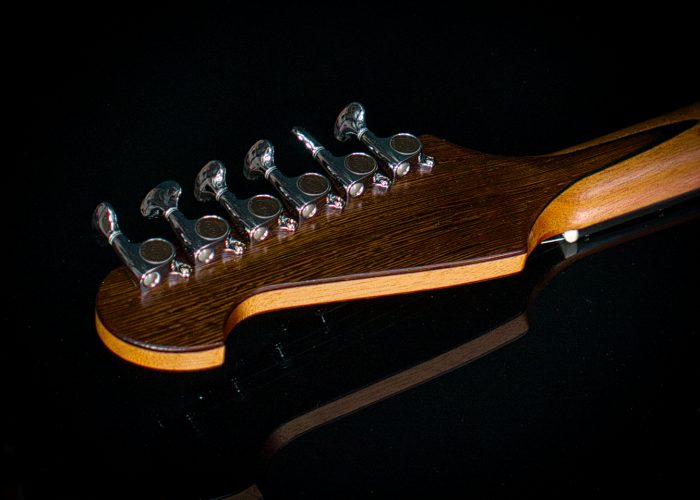

Model 2 electric head rear
Model 2 electric head and neck
Model 2 electric full
Model 2 electric full 3
Model 2 Electric
  • Material

    Body - amoora

    Neck - mahogany

    Fretboard - wenge

    Head veneers - wenge

    Finish - open grain satin acrylic lacquer
  • Hardware

    Tuners - Chrome Gotoh 510

    Frets - hand polished Evo Gold

    Bridge - Chrome Japanese cut off tele with brass compensated saddles

    Pickup - Australian made Firebird mini humbuckers or whatever you desire

    Pots - Alpha with ebony knobs

    Switch and jack - Switchcraft
  • Dimensions

    Body length - 420mm

    Body width - 320mm

    Body thickness - 45mm

    Scale length - 628mm
